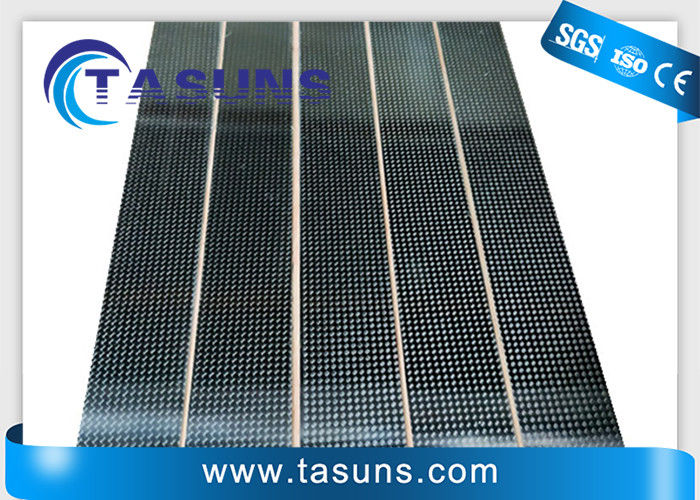

Flexible Carbon Fiber Sheets Vibrating Plate For Spring Bow and Arrow Blades

Flexible Carbon Fiber Sheets Vibrating Plate For Spring Bow and Arrow Blades
Flexible Carbon Fiber Sheets Vibrating Plate For Spring Bow and Arrow Blades Flexible Carbon Fiber Sheets Vibrating Plate For Spring Bow and Arrow Blades

Large Image :  Flexible Carbon Fiber Sheets Vibrating Plate For Spring Bow and Arrow Blades

Product Details:
Place of Origin: Dongguan, China
Brand Name: Tasuns
Certification: CE, SGS, ISO
Model Number: Tapered carbon fiber sheet
Payment & Shipping Terms:
Minimum Order Quantity: 200pcs
Price: Negotiable
Packaging Details: Carton box or customized
Delivery Time: 7-10 days for sample
Payment Terms: T/T, Paypal, L/C
Supply Ability: 200pcs per week

Flexible Carbon Fiber Sheets Vibrating Plate For Spring Bow and Arrow Blades

Description
Material: Carbon Fiber Composite Thickness: 0.25mm
Weave: 3k/plain/ Twill/ UD Finish: Glossy/matte
Holes: CNC Machining Mold: No Need
Vibration: 4000times/minute Application: Aerospace, Automobile Manufacturing, Power Equipment
High Light:

Flexible Carbon Fiber Sheets

,

0.25mm carbon fiber composite plate

,

0.25mm Carbon Fiber Sheets

Flexible Carbon Fiber Vibrating Plate For Spring Bow and Arrow Blades



1. Tailoring of prepreg

0.2mm, 0.5mm,, 1.0mm, 1.5mm, 2.0mm, 3.0mm, 5.0mm, 6.0mm, 10.0mm, 20mm, etc. The thicker the sheet, the more layers of carbon fiber prepreg are required. Generally, a 1mm carbon fiber board requires about 5 layers of prepreg.

2. Laying of prepreg:

The difference of the layup sequence will not only affect the initial load, growth rate, and fracture toughness of the matrix cracks, but also have a significant impact on the saturation and crack density of the matrix cracks.

Flexible Carbon Fiber Sheets Vibrating Plate For Spring Bow and Arrow Blades 0



Specification:



Name

 Carbon fiber laminate and sheet

Thickness  0.2-2.5mm
Length  500mm
Width  500mm

Package

 Standard suitable package by PP/ Carton box

Surface  Glossy, matte, sanded, no sanded and no painted
Shipment Term 1) 0-100kg: express&air freight priority,
2) >100kg: sea freight priority,
3) As per customized specifications
Trade terms

EXW, DDP

Drawing format JPEG,PDF,DWG,DXF,IGS,STEP.CAD
Note  Manufacture custom parts according to your drawings or samples are poissible.



Available custom finish:

Flexible Carbon Fiber Sheets Vibrating Plate For Spring Bow and Arrow Blades 1

Flexible Carbon Fiber Sheets Vibrating Plate For Spring Bow and Arrow Blades 2

FAQ:

1. How can I get the reasonable price efficiently?

-Quantity, specification and 3D drawing will be helpful.

2. What file format are available for you to open?

-DWG, DXF, STP, IGS are available.

3. What is your payment term?

-T/T and Paypal are common, other methods could be discussed.

4. What is the shipping method?
-By sea/air/express (TNT, FEDEX, DHL, UPS, EMS,and ect.), assigned forwarder also works.
