Product Details:
|
Material: | CFRP+epoxy Resin | Shape: | Round |
---|---|---|---|
Carbn Fiber: | 65% | Epoxy Resin: | 35% |
Feature: | Lightweight, Long Lifetime | Production: | Pultruded Carbon Fiber Composite |
Package: | Carbon Box | Accessories: | Custom Aluminium Lid |
High Light: | CFRP Carbon Fiber Tarp Poles,Backpacking Carbon Fiber Tarp Poles,ISO Certified Carbon Fiber Tube |

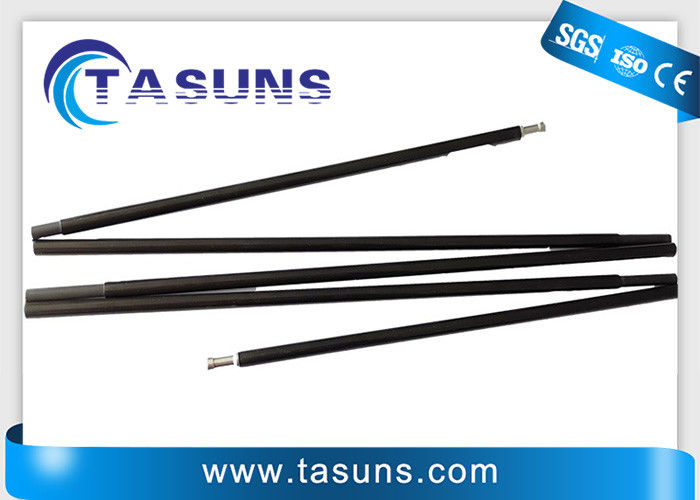

Round Carbon Fiber Tubing Tarp Poles For Backpacking Outdoor
*Reminder: All prices on the website are for reference only, and the actual prices are subject to specific communication.
Why are Carbon Fiber Tarp Poles good?
Product details:
Name | Pultrued carbon fiber tubing | |||
Raw Materials | Carbon Fiber , Epoxy | |||
Diameter Range O.D. | From 6mm O.D. to 300 mm | |||
Wall Thickness | From 0.5mm to 20mm | |||
Length | From 0.05 Meter to 3.5 Meters | |||
Colors | Black / colorful | |||
Water Absorption | < 1.5 w-% | |||
Denisty | 1.5g/cm3 | |||
FIBER TYPE | HS Carbon | HM Carbon | ||
Stifiness | 90- 100 Gpa | 120-180 | ||
Bending Strength | >600 Mpa | >500 Mpa | ||
Tensile Strength | > 650 Mpa | >550 Mpa | ||
Denisity | > 1.5g/cm3 | >1.5g/cm3 |
Details of Carbon Fiber Tent Poles:
Application for carbon fiber tubes:
1) Outdoor activities: tent Pole, kite Rod, arrow shaft, ski pole, fishing rod, golf shaft, sail batten, hockey stick, kick board, skate boards, paddle shafts, bows and arrows, crossbows, golf shafts, slide guides, boat, kayak
2) Tool: umbrella shaft, umbrella rod, curtain rod, fence post, rail, handrail, frame for case and bags, antenna, CB antennas, flag pole, oil sucking rods, bolt, stair, ladder, waste treatment equipment, greenhouse structures, scaffold, portable work platforms, cooling tower, luggage rack, window/door frame, sign post, bridge structure, bus bar supports, tool handles, bike flags, flag poles, floor gratings, lading bars in trucks and railcars, shoe soles, protective cases for laptops and iPhones
3) Toys: model toy, unmanned aerial vehicles, formula-1 race car
4) Vehicle: motor top sticks, u-shaped motor stator wedges, service truck booms, snowmobile track stiffeners, high-end automobile components, bicycle frames, glider, kit car, microcar, kart, bodyshell, wind turbine blade
